AIO-Y SERIES
With three-power-option products, AIO-Y series solar pathway lights cover all kinds of trunk and brand roads from 3-9 meters' wide in cities and villages. The die-casting aluminium lamp body provides AIO-Y series solar pathway lights excellent corrosion resistance. Thus, it is ideal for coastal installations. The PIR/motion sensor built in the solar pathway lights ensures optimal lighting for pedestrians.
Why Choose SUNLAIRE Solar Pathway Light?
LONGER POLE DISTANCE
Large beam anagle, 5 times of MH pole distance, less lights needed
MOTION SENSOR AVAILABLE
PIR/Motion sensor avaliable, friendly to pedestrians
LONGER BRIGHT TIME
Medium bright mode to middle night
Soft light mode to 1:30-2:00 then dim till dawn
6 YEARS WARRANTY
Better quality, longer warranty
Step by step, our team will tailor you the most reliable solar lighting solution meeting your requirements of road conditions, schedule, environments as well as your budget.
Request A QuotationSpec Sheet of SUNLAIRE Solar Pathway Light
| Model Number | AIO-Y2M | AIO-Y3M | AIO-Y4M |
|---|---|---|---|
| Lumen Output | 3510lm | 5250lm | 7200lm |
| Mounting Height | 5-6m | 6-7m | 7-8m |
| Pole Distance | 20-30m | 25-35m | 30-40m |
| Colour Temperature | 6000K white light (Custom options available) | ||
| Charging Technology | PWM/MPPT | ||
| Storage Battery | LiFePO4 lithium | ||
| Working Time | Dusk to dawn with automatic energy-saving mode (Custom options available) | ||
| Rainy Day Backup | 6-8 days | ||
| Working Temperature | -20°C~60°C | ||

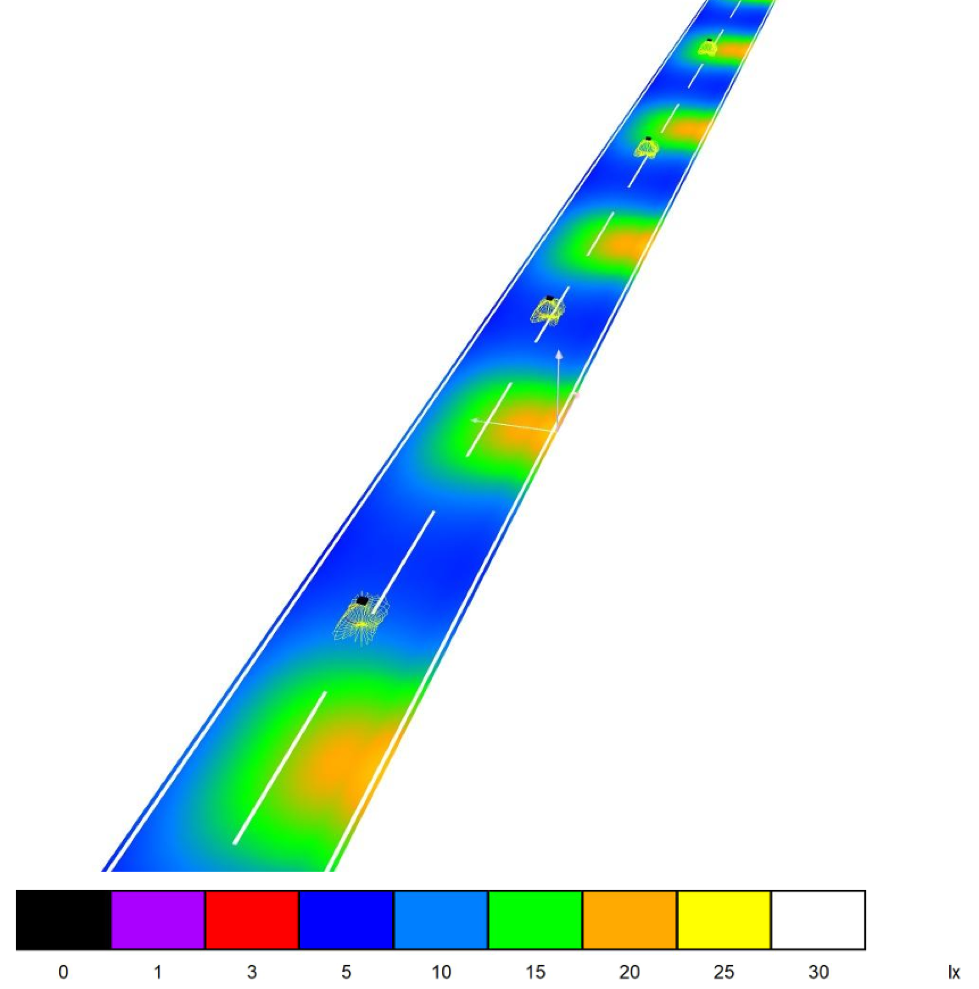

DIALux Lighting Simulation
| Emax: 20 lux | Eav: 11 lux | U0：0.574 |
| Road Width: 7 m | Mounting Height: 7 m | Pole Distance: 25 m |
| Luminous Flux: 5250 lm | Pole Layout: Single row | Lighting Class: ME5 |
